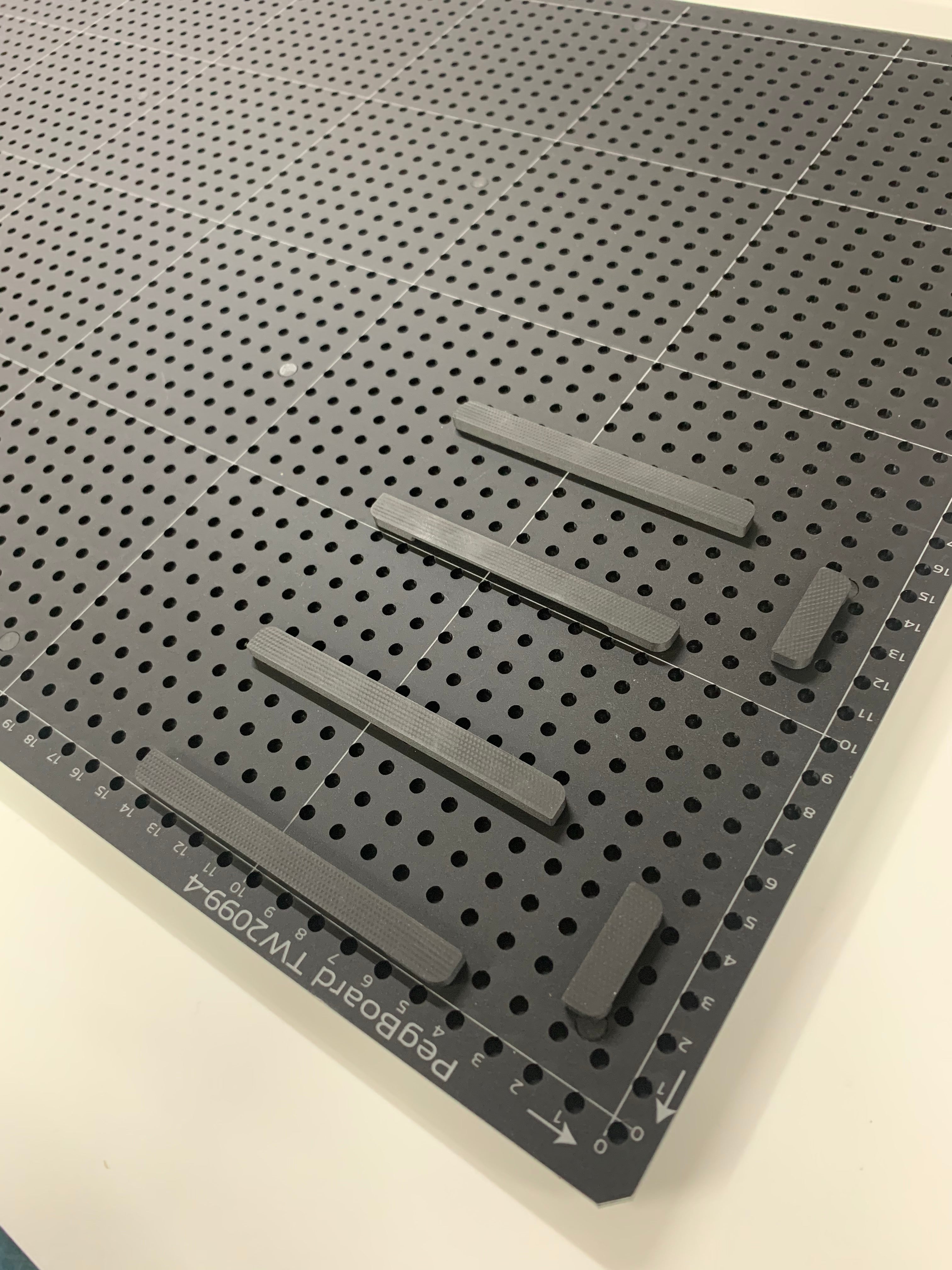

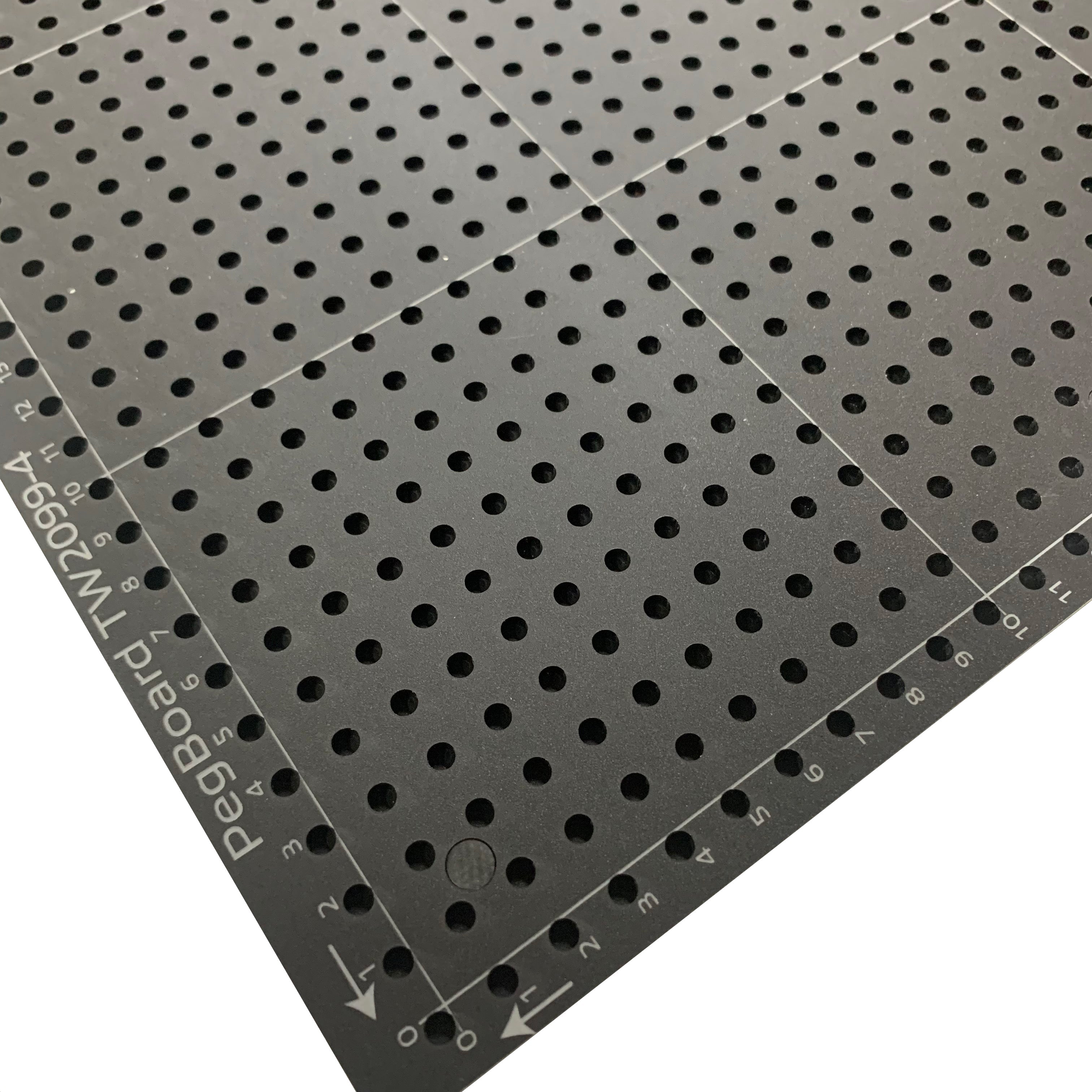

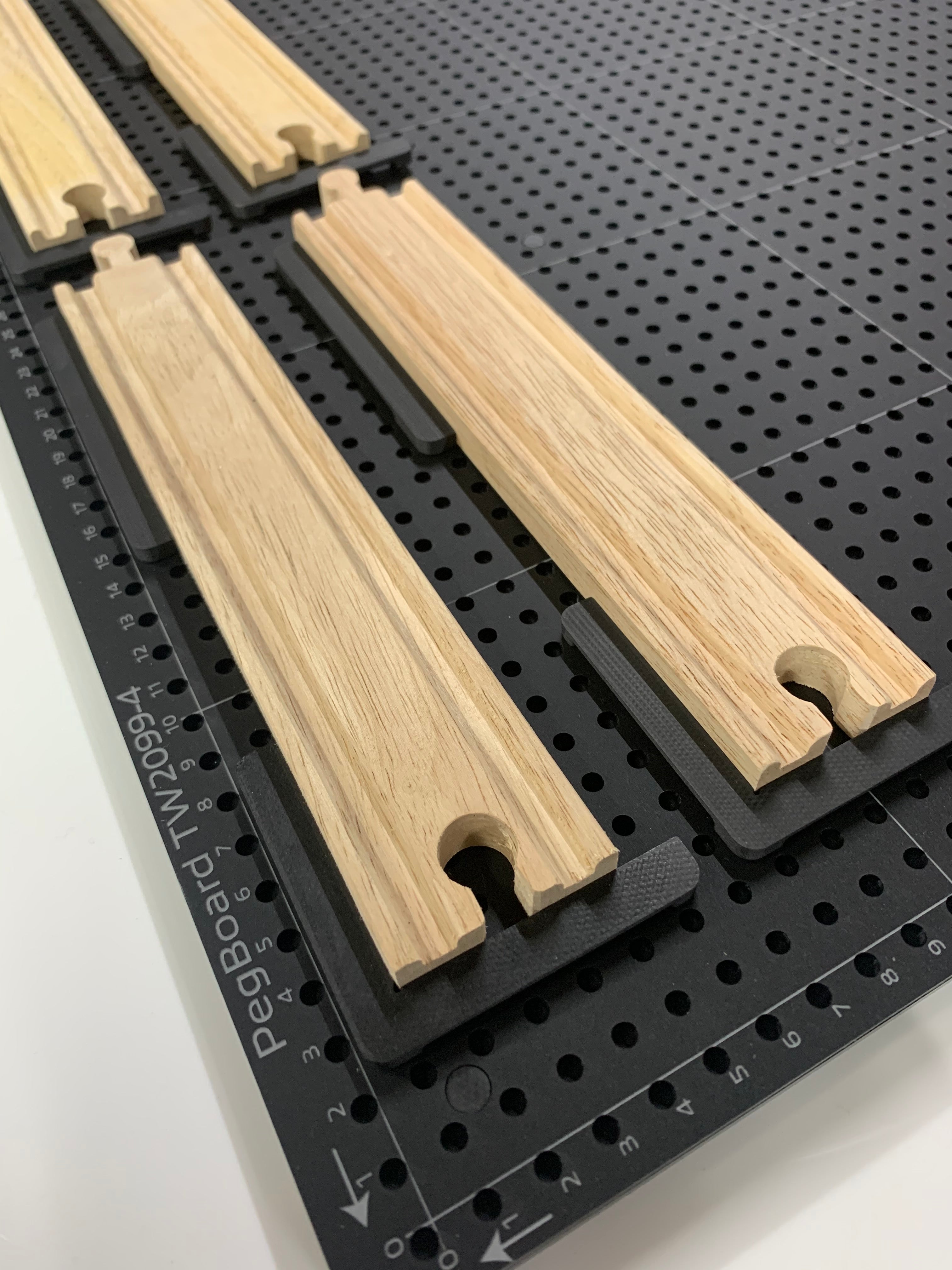

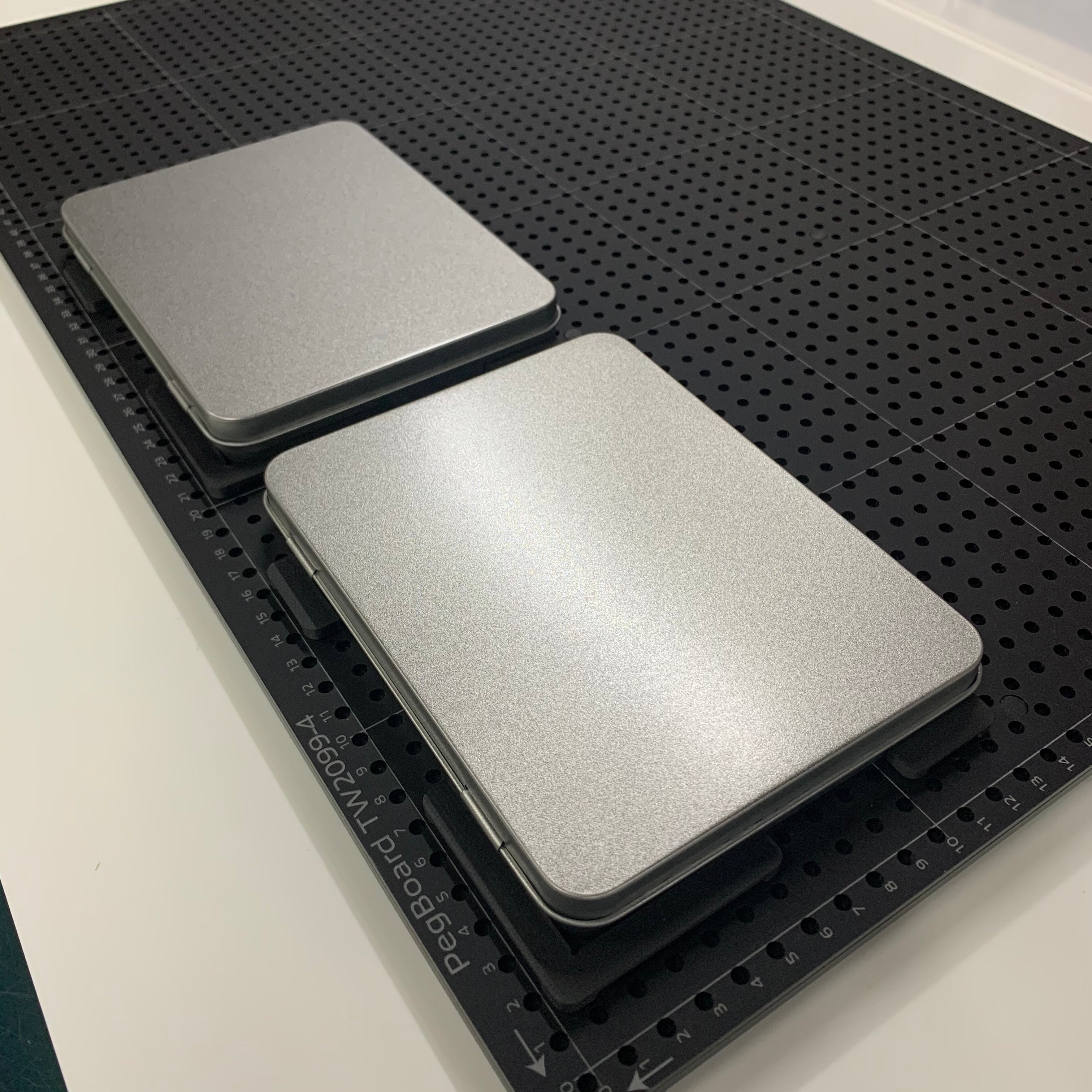

Peg board alignment jig for digitally printing objects and blanks using a large format flatbed printer, Our pegboard jig is perfect for test printing and positioning objects for precision printing on your UV Flatbed Digital Printer.
Not sure if your items will fit the jig?
The first step would be to send us a photo of the product you want to print on, get in touch today and we'll happily help.
What's Included:
- 1 x Peg Board Jig - optimized for UJF-7151
- 18 Specialist Peg Board Guides, including 14 x Standard (30mm x 8, 100mm x 2, corner x 4), and 4 x Tall.
-
Need extra? Specialist peg board guides and steel pins are available to purchase separately)
- 1 x PDF Template digital printing layout file
Jig Specifications:
- Size - 895mm x 595mm
- Can be used portrait or landscape.
- Can be used with zero point at the left or right on the machine
Jig Compatibility: Fits flat bed printers with a bed size larger than 900x600mm
Please note:
- Other products shown in images are not included.
- Images are for reference only and may not be of the actual jig.
